Zero Turn Mower Maintenance Playbook for the Viper Lineup

Engine oil and filter service across the Viper lineup

Every Viper zero-turn ships with one of two engine families: a Kawasaki air-cooled V-twin (FR691 on the V-400 Series, FR730 on V-600 Pro, FT730 on V-600 XP and the V-800 Pro, FX850 EVO EFI on the V-800 XP, FX1000 EFI on the V-800 Elite and ProStand XP) or a Vanguard alternative on the V-800 Series trims and ProStand. Per Kawasaki's FT730 and FX-series service manuals, the engine oil change interval is every 100 hours of operation, and the oil filter is changed every 200 hours. The FT730 holds 1.9 quarts without a filter or 2.2 quarts with a new filter, and Kawasaki recommends SAE 10W-40 (also 10W-30 or 5W-20 acceptable) meeting API SF/SG/SH/SJ/SL. The FX1000 EFI on the Elite and ProStand XP holds 2.0 U.S. quarts with the filter and follows the same 100-hour oil and 200-hour filter cadence per Kawasaki. For V-800 Series and ProStand owners running the Vanguard Big Block, the Vanguard manual calls for an oil-plus-filter change every 100 hours or annually, whichever comes first. The one exception is the Vanguard Big Block EFI Oil Guard System available on the V-800 Elite Vanguard option - per Vanguard's literature, that system extends the oil change interval to 500 hours, but only when the Oil Guard option is fitted. Do not assume 500-hour intervals on any non-Oil-Guard engine. Check oil level before every use; on the FR691, Kawasaki specifies a level check every 10 hours.

Spark plugs, air filters, and oil cooler checks

Spark plugs are one of the easiest places to get bad advice on the internet. The correct plugs for Viper engines are not Champion, not Kohler, and not a generic Briggs part - they come straight from the engine OEM. Per Kawasaki's service manuals for the FR and FT V-twins (FR691, FR730, FT730) and the FX850 EVO EFI, the specified plug is the NGK BPR4ES gapped at 0.030 inch (0.76 mm); per Kawasaki, the FX1000 EFI on the V-800 Elite and ProStand XP uses the NGK BPR5ES at the same 0.030-inch gap. Kawasaki recommends cleaning and inspecting the plug periodically and replacing it per its service schedule; remember the V-twin uses two plugs. For owners running the Vanguard Big Block, use the plug specified in your Vanguard manual, gapped at 0.030 inch (0.76 mm) and torqued to 180 lb-in (20 Nm). Air filter service is engine-specific too. Per Kawasaki, the FX-series primary air filter (FX850 EVO and FX1000 EFI on V-800 XP, V-800 Elite, and ProStand XP) is replaced every 250 hours. The carbureted vs. EFI distinction also matters here: the V-800 XP, V-800 Elite, and ProStand XP Kawasaki option are all EFI, so there is no carburetor to disassemble, drain, or treat with cleaner. On any EFI-equipped Viper, skip the carb-cleaner aisle. Finally, per Kawasaki's FX1000 EFI manual, the oil cooler fins should be checked and cleaned every 100 hours - debris loading on those fins is one of the most common causes of summer-time overheating on commercial workloads.

Hydro-Gear transmission service: the most-missed interval

Every Viper zero-turn rides on a Hydro-Gear hydrostatic transmission. The V-400 Series uses the ZT-2800 with charge pump and overflow tank; the V-600 Series runs the ZT-3100 (V-600 Pro) or ZT-3400 (V-600 XP); the V-800 Pro uses the ZT-3800, the V-800 XP and ProStand XP use the ZT-4400, and the V-800 Elite carries the heavier ZT-5400. All of them follow the same maintenance protocol because they all belong to the Hydro-Gear ZT-series family. Per Hydro-Gear's service literature, initial transmission oil and filter service is performed at 75 to 100 hours, and every 400 hours thereafter. The most common mistake commercial operators make on these machines is using the wrong fluid. Per Hydro-Gear, the correct fill is 20W-50 engine oil with an API SL classification and a minimum viscosity of 9.0 cSt (55 SUS) at 230 degrees Fahrenheit - NOT ISO 32, ISO 46, or ISO 68 hydraulic fluid. Putting an ISO-grade hydraulic oil in a Hydro-Gear ZT is a warranty-voiding mistake because the additive package is wrong for the closed-loop, integrated transaxle design. Hydro-Gear publishes service kits with the correct filter and fluid: kit 72750 covers the smaller ZT-2800 through ZT-3800 units (V-400 Series, V-600 Series, V-800 Pro), while kit 72881 covers the larger ZT-4400 and ZT-5400 units (V-800 XP and Elite, ProStand XP). Skipping the initial 75 to 100 hour service is also a frequent omission - that early change is meant to flush break-in particles before they migrate into the charge pump and check valves.

Deck, spindle, blade, and tire inspection routine

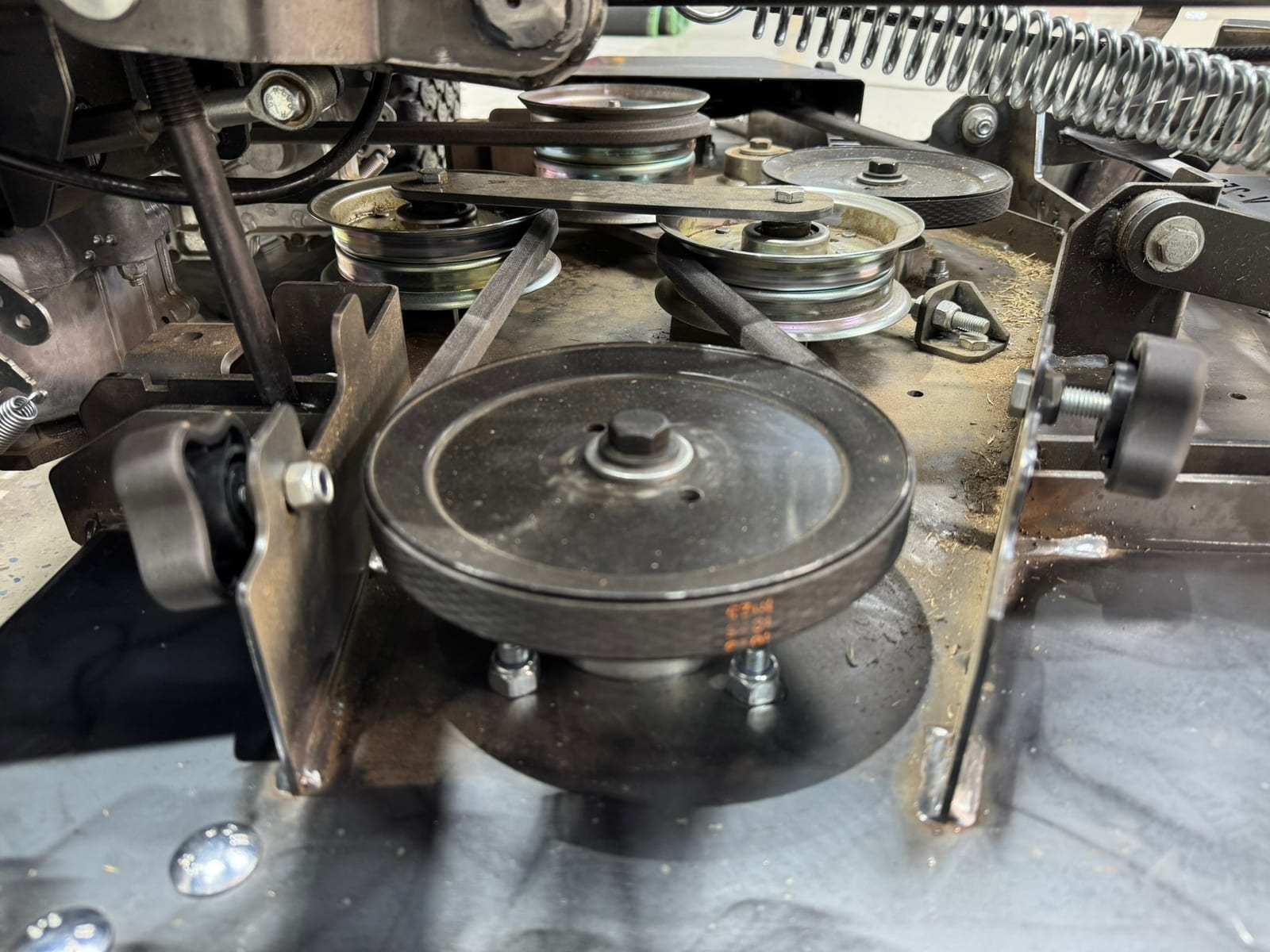

The Viper deck is engineered to be one of the lowest-maintenance components on the machine, but it still needs attention. The V-800 Series, V-600 Series, and ProStand XP use a reinforced 6-gauge deck shell with inner baffling, and the V-400 Series uses a reinforced 9-gauge deck. Inspect the deck shell weekly for impact damage, missing or bent baffling fasteners, and grass-pack at the discharge chute. The spindles across the V-600 Series, V-800 Series, and ProStand XP are cast-iron units with dual, double-row bearings; on the V-400 Series the spindle pulleys are heavy-duty split-metal units. Viper does not publish a grease interval or a bearing part number, so consult your dealer for the specific lubrication schedule on your serial number, and use only the grease grade your service literature calls for. Blade specifications are also not published by Viper - blade length, thickness, and part number should be confirmed with your dealer rather than guessed from a parts site. Inspect blades before each use for cracks, bent tips, or worn cutting edges; balance them after every sharpening. Tire pressure is critical for a level cut: the V-400 Series, in its 52-inch configuration, is listed with 22 by 9.5 rear and 13 by 5 front tires; the V-600 Pro uses 22 by 12 rears on the 60-inch deck, while the V-600 XP and V-800 Pro run 24 by 12; the V-800 XP and Elite run 26 by 14; and the ProStand XP runs 24 by 14 on the 60-inch deck. Check pressures cold, weekly, against the sidewall stamping.

Pre-season, mid-season, and storage checklist

Building a consistent service calendar is what makes the OEM intervals actually happen. At pre-season (typically late winter before the spring push), perform a full engine oil and filter change per Kawasaki or Vanguard, inspect and gap or replace spark plugs (NGK BPR4ES for the carbureted Kawasaki FR/FT V-twins and the FX850 EVO EFI, NGK BPR5ES for the Kawasaki FX1000 EFI, and the plug specified in your Vanguard manual for Vanguard engines), replace the air filter element if you are near the 250-hour mark on an FX-series Kawasaki, and inspect the Hydro-Gear transmission for any external seep around the charge pump or filter housing. Mid-season is the right time to recheck oil level (the FR691 owner's manual specifies a 10-hour level check), clean the oil cooler fins on FX-series engines per Kawasaki's 100-hour interval, sharpen and balance blades, and verify tire pressures and deck level. End-of-season storage is where most commercial fleets either save themselves money or lose it. For carbureted V-400 Series, V-600 Series, V-800 Pro, and ProStand XP Vanguard variants, stabilize the fuel and run it through the system before parking; for EFI V-800 XP, V-800 Elite, and ProStand XP Kawasaki units, there is no carburetor to drain, so simply stabilize the fuel per Kawasaki guidance. Disconnect or maintain the battery, grease any zerks per your owner's literature, wipe down the deck underside, and store the machine on a clean, dry surface. All four Viper series carry the same 4-3-2 warranty - four years full limited, three years on the engine and Hydro-Gear components, and unlimited hours during the first two years - and documented maintenance is what keeps that coverage intact when something does go wrong.

Frequently Asked Questions

A zero-turn mower lives or dies on two service items: engine oil and transmission fluid. Get those intervals right, use the correct OEM-specified fluids and plugs, and a commercial-grade Viper machine - whether it is the compact V-400 Series, a mid-range V-600 Series, a flagship V-800 Pro, XP, or Elite, or the ProStand XP stand-on - will deliver the durability the lineup is built for. Remember the rules: per Kawasaki, engine oil at 100 hours and filter at 200 hours; per Hydro-Gear, initial transmission service at 75 to 100 hours, then every 400 hours, using 20W-50 engine oil rated API SL; NGK BPR4ES plugs on the carbureted Kawasaki FR/FT V-twins and the FX850 EVO EFI, NGK BPR5ES on the Kawasaki FX1000 EFI, and the plug specified in your Vanguard manual on Vanguard Big Blocks. Document every service, keep your records with the machine, and you preserve the 4-3-2 warranty Viper publishes across all four series. Spend once, build it right, and make it last - that is what disciplined maintenance actually buys you.
