Viper Mower Won't Start: A Zero Turn Mower Won't Start Troubleshooting Guide

Step 1: Define the failure -- no-crank or crank-no-start?

Before you touch anything, define the failure mode. A no-crank condition means you turn the key and nothing happens, or you hear a single click from the starter solenoid. A crank-no-start means the engine turns over strongly but never catches. These two failures have almost no overlap in root cause, so sorting them first saves an hour of wasted effort. On a Viper V-400 Series, V-600 Series, V-800 Series, or ProStand XP, the ignition switch feeds the starter solenoid through a safety interlock chain that requires the parking brake engaged, the PTO disengaged, and an operator in the seat. If any one of those switches is out of position or has failed, you get a no-crank. A dead or weak battery also produces no-crank, usually with a rapid chattering click as the solenoid pulls in and drops out. Crank-no-start, on the other hand, almost always points to fuel delivery, spark, or air. Listen carefully when you turn the key: a strong, even crank means your starter and battery are fine and you should move down the tree to fuel and spark. A slow, labored crank means you stop and test the battery first -- trying to fire a Kawasaki FT730 or FX1000 EFI on a weak battery can trip EFI diagnostic logic and send you chasing ghosts that don't exist. Write down which side of the tree you are on and proceed accordingly.

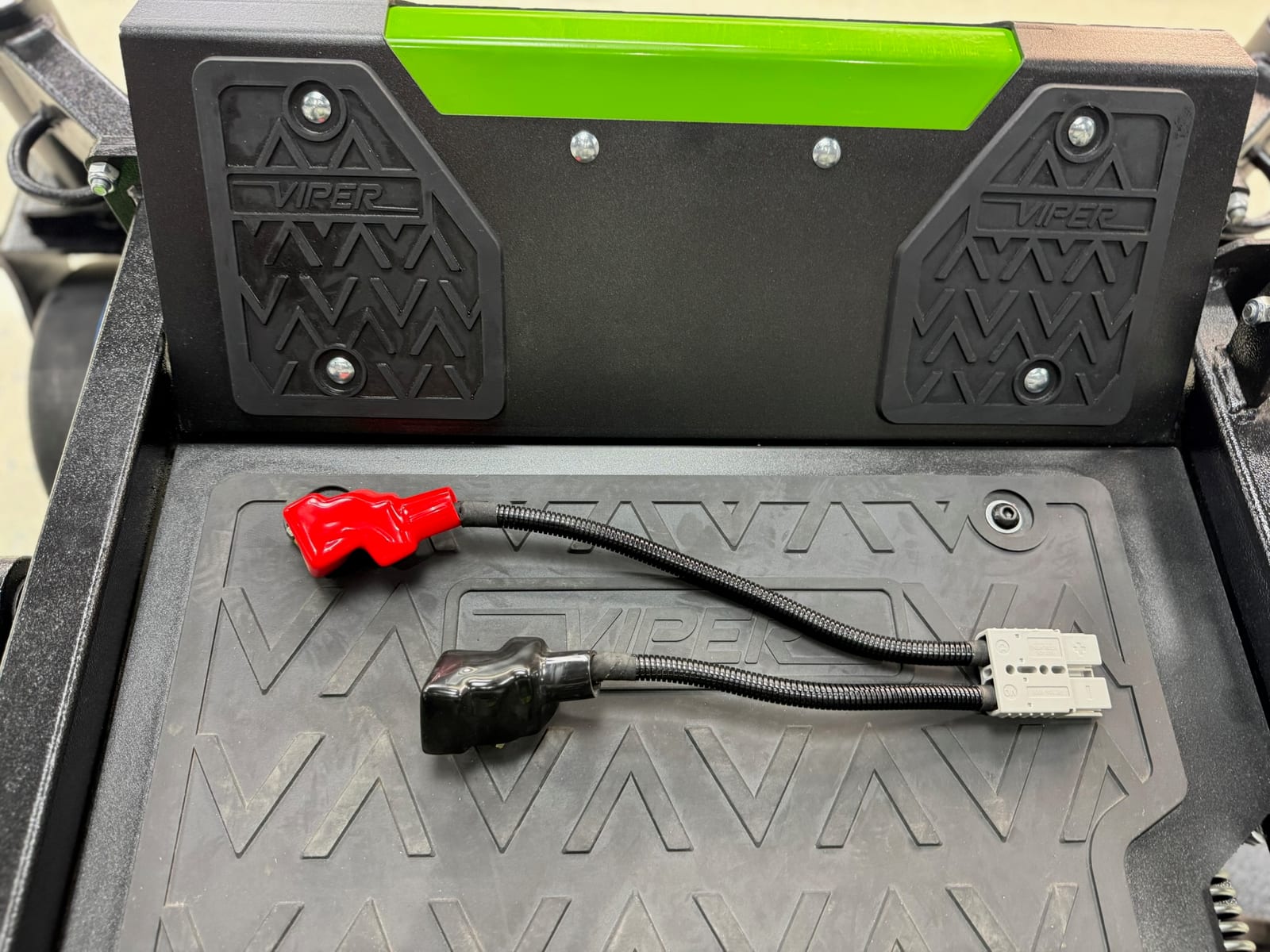

Step 2: Battery, cables, and the charging system

Almost every spring no-start call a commercial shop takes is a battery problem. A 12-volt lead-acid battery sitting in a Viper V-600 Series or V-800 Series over winter will self-discharge several percent per month, and a battery that reads 12.2 V at rest will not crank a Kawasaki FT730 reliably. Put a multimeter across the posts: a healthy resting voltage is 12.6 V or higher. Below 12.4 V, put it on a smart charger before you do anything else. With the engine cranking, voltage should not drop below about 9.5 V at the posts -- if it collapses to 8 V or lower, the battery has a weak cell and needs replacement. Inspect the cable terminals for white or green corrosion and the cable lugs for green discoloration under the insulation; either condition adds resistance that mimics a dead battery. Tighten the negative cable to the frame ground point. On EFI machines like the V-800 Elite or the ProStand XP with the FX1000 EFI, low voltage during cranking also starves the fuel pump and ECU and can prevent ignition even when the engine is mechanically sound. After the battery passes, verify the charging system: with the engine running at high idle, voltage at the posts should read in the high 13 V to mid 14 V range. If it reads battery voltage, the stator or regulator/rectifier is not charging and the next start attempt will be a no-crank.

Step 3: Walk the safety interlock chain

Viper builds the parking brake into the drive handles on the V-400 Series, V-600 Series, and V-800 Series, and that brake is part of the start-permission chain. If the bail is in the wrong position or the brake microswitch has dirt, moisture, or vibration damage, the starter circuit never closes and you get a no-crank with full battery voltage. Walk the chain methodically. With the key off, push the drive handles fully outboard (the parked position) and confirm the brake is mechanically engaged. Make sure the PTO switch is fully off and seated, not partially pulled. Sit down hard in the seat -- the seat safety switch under the cushion needs a positive contact, and a cracked plastic actuator or a wire pulled loose by mice over winter is a common failure point. Try the key again. If you now have a crank, walk back and find which interlock was holding the circuit open by toggling each one. Some shops will jumper the seat switch with a paperclip to confirm the diagnosis, but never operate the machine that way -- the interlock is there to keep the deck from spinning when you fall off. If the chain is clearly closed but the starter still does nothing, the fault is between the ignition switch and the solenoid: a blown main fuse, a corroded ignition switch, or a failing starter solenoid itself. Test for 12 V at the solenoid trigger wire while a helper turns the key.

Step 4: Fuel supply on carbureted versus EFI Viper engines

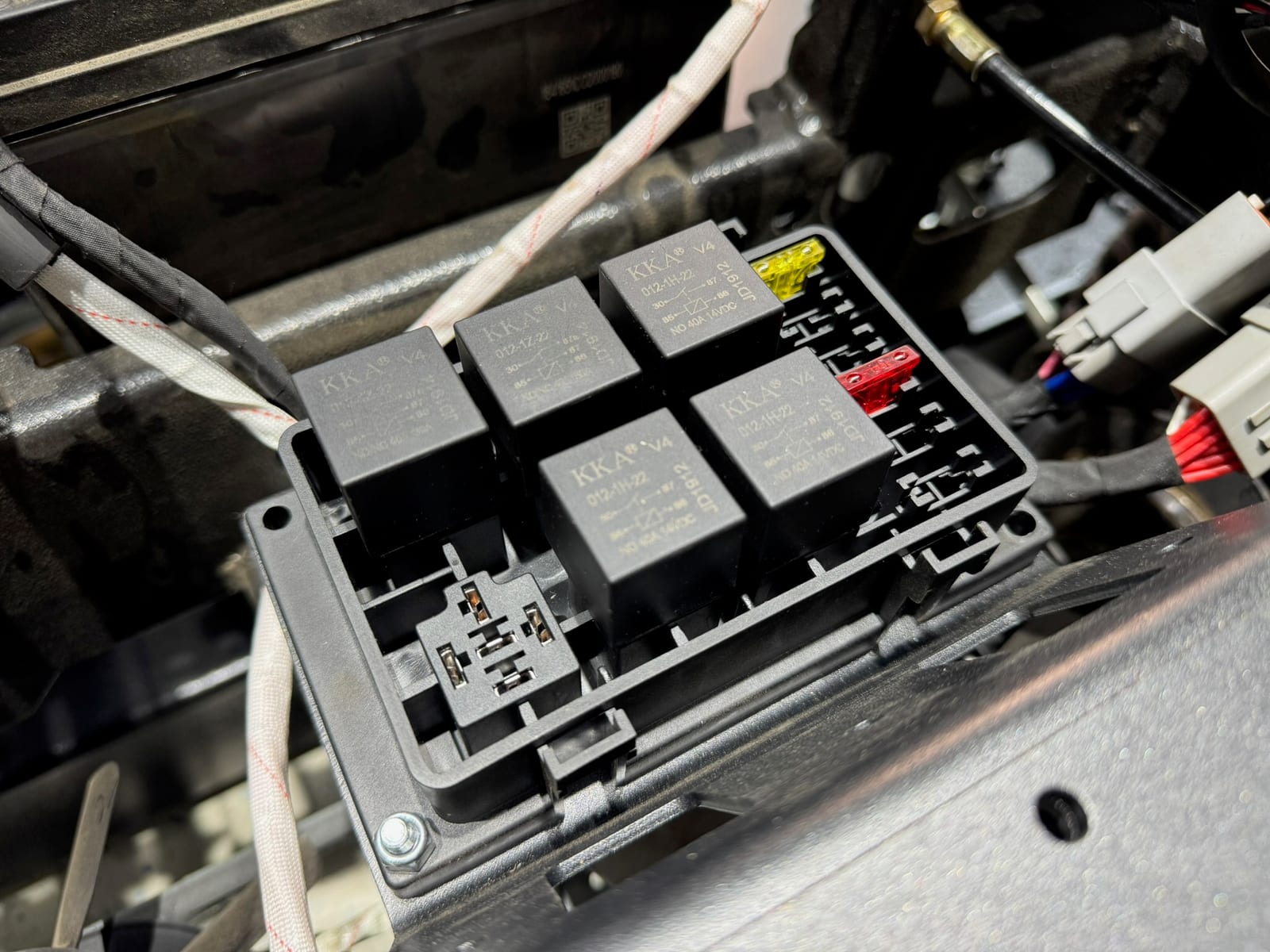

If you have crank but no start, the next branch is fuel. The carbureted Kawasaki engines in the Viper lineup -- the FT730 in the V-800 Pro and the V-600 XP, the FR730 in V-600 Pro, and the FR691 in the V-400 Series -- can suffer carb varnish from fuel left to sit. If the machine sat all winter with ethanol-blended pump gas, expect gummed jets and a stuck float needle. Drain the dual fuel tank pods (V-400 Series) or the dual tanks (V-600 Series and V-800 Series), refill with fresh non-ethanol fuel, and try again. If it still won't fire, the carburetor bowl likely needs cleaning. The EFI Viper engines are a different conversation: the Kawasaki FX850 EVO EFI in the V-800 XP, the FX1000 EFI in the V-800 Elite and in the Kawasaki version of the ProStand XP, and the Vanguard Big Block EFI Oil Guard option on the V-800 Elite all run electronic fuel injection. There is no carburetor to clean. On an EFI no-start, listen for the fuel pump priming for two to three seconds when you turn the key to RUN. No prime sound means a blown EFI fuel pump fuse, a failed relay, or a wiring harness fault. If the pump primes but the engine will not catch, check for fuel pressure at the test port per the Kawasaki service manual and inspect the fuel filter -- stale fuel and debris are still the top causes even on EFI.

Step 5: Spark, plugs, and ignition health

If fuel is confirmed and the engine still will not fire, move to spark. Pull the spark plug boots one at a time and confirm the correct plug is installed. Kawasaki FT/FR-series engines on the V-400 Series, V-600 Series, and V-800 Pro use the NGK BPR4ES, gapped to 0.030 inch per Kawasaki's service literature; the Kawasaki FX1000 EFI takes the NGK BPR5ES. Vanguard Big Block engines specified on the V-800 XP, the V-800 Elite Oil Guard option, and the Vanguard ProStand XP variant use the plug specified in your Vanguard manual, gapped to 0.030 inch. Do not substitute a random off-spec plug -- it may not meet Kawasaki's or Vanguard's heat range spec. Per Kawasaki, inspect and service the spark plug per the interval in your engine OEM manual; replacing both plugs on the V-twin at once keeps cylinder-to-cylinder ignition balance consistent. Check the gap with a feeler gauge -- a plug that closed up from heat cycling or one with a cracked ceramic insulator will not fire under cranking compression. Reinstall the plug, ground the threads to the block, and crank the engine while watching the electrode. A strong blue spark every revolution is what you want. Weak orange spark, or no spark at all, points to the ignition coil, kill wire, or magneto. Verify the kill wire is not shorted to ground at the engine kill switch -- a chafed wire under the deck is a common silent killer.

Step 6: Air, choke, and a few last culprits

Air starvation is the last branch of the no-start tree and the easiest to miss. A primary air filter packed with grass dust will let an engine crank but never catch under full choke. Pull the air filter housing on your V-400 Series, V-600 Series, V-800 Series, or ProStand XP and inspect it. Per Kawasaki's service literature for the FX1000 EFI, the primary air filter is on a 250-hour replacement schedule; if you cannot remember the last time you changed it, change it now. On carbureted engines, verify the choke plate fully closes when you set the choke -- a stuck choke linkage will prevent cold starts even with good fuel and spark. On EFI engines, there is no choke to worry about, but a fouled or unplugged throttle position sensor will throw the ECU off and cause a no-start condition. Two more culprits are worth mentioning before you call the dealer. First, the kill wire on the engine has to be intact -- a pinched wire to ground from a deck spindle vibration will cut spark on a perfectly healthy engine. Second, an over-greased PTO clutch or a bound-up blade can place enough load on the engine that cranking RPM falls below what the EFI needs to fire; spin the blades by hand with the PTO off to confirm they turn freely. If you have walked every step of this list and still have no start, document what you tested, what voltages you read, and what you ruled out, then call your Viper dealer with the data in hand.

Frequently Asked Questions

A no-start on a Viper V-400 Series, V-600 Series, V-800 Series, or ProStand XP almost always comes down to a small, identifiable failure rather than a catastrophic one. Defining whether you have a no-crank or a crank-no-start at the very start of your diagnosis cuts your search time roughly in half, and walking the rest of the tree -- battery, interlocks, fuel, spark, air -- in disciplined order is what separates a 15-minute roadside fix from a wasted afternoon. The components Viper specs are well-documented: Kawasaki FT730, FR691, FR730, FX850 EVO EFI, and FX1000 EFI engines, Vanguard Big Block options including the Oil Guard, the NGK plug specified for each engine, Hydro-Gear ZT transmissions, and integrated parking brake interlocks. Stick to OEM service intervals from Kawasaki, Vanguard, and Hydro-Gear, document your readings, and your dealer call -- if you need to make one -- will be a 10-minute conversation instead of a guessing game. The Viper 4-3-2 warranty (4-year full limited, 3 years on engine and Hydro-Gear, unlimited hours in the first two years across all four series) is there to back you up if the failure turns out to be a component defect.
