Viper Mower Spark Plug Replacement: A Spec-Sheet Honest Guide
14 min read · 2790 words · Updated 2026-06-19
A Viper mower spark plug replacement uses the NGK BPR4ES for the Kawasaki FR691, FR730, FT730, and FX850 EVO EFI engines and the NGK BPR5ES for the Kawasaki FX1000 EFI, both gapped to 0.030 inch (0.76 mm) per Kawasaki. The Vanguard Big Block uses the plug specified in your Vanguard manual, gapped to 0.030 inch and torqued to 180 lb-in (20 Nm) per Vanguard. Per Kawasaki, inspect and service the plug on the interval in your engine's manual. Every V-twin in the lineup carries two plugs, so order in pairs.
A mower spark plug replacement is one of those jobs that takes fifteen minutes, costs less than a fast-food lunch, and quietly decides whether your engine starts on the first crank in July or grinds through three batteries before catching on a damp October morning. On a Viper, the right plug is not a guessing game and it is not a Champion off the pegboard at the hardware store. Every engine Viper installs is built by either Kawasaki or Vanguard, and both of those OEMs publish exactly which NGK plug they want, what gap to set it at, and how often to clean it and replace it. This guide walks a Viper owner through a mower spark plug replacement on every series in the lineup: the V-400 Series with its Kawasaki FR691, the V-600 Series with the Kawasaki FR730 or FT730, the V-800 Series in Pro, XP, and Elite trims with Kawasaki FT730, FX850 EVO EFI, or FX1000 EFI plus the Vanguard alternatives, and the ProStand XP with the Kawasaki FX1000 EFI or Vanguard Big Block. We will name the plug, list the gap and the torque, and quote the interval directly from Kawasaki's service manual and Vanguard's service literature. Viper does not publish a maintenance schedule on its own site, and that is correct, because the engine builder owns that document. Read on, do the job right once, and your Viper rewards you with the kind of cold-start reliability the spec sheet promised.
Which NGK spark plug fits your Viper engine?

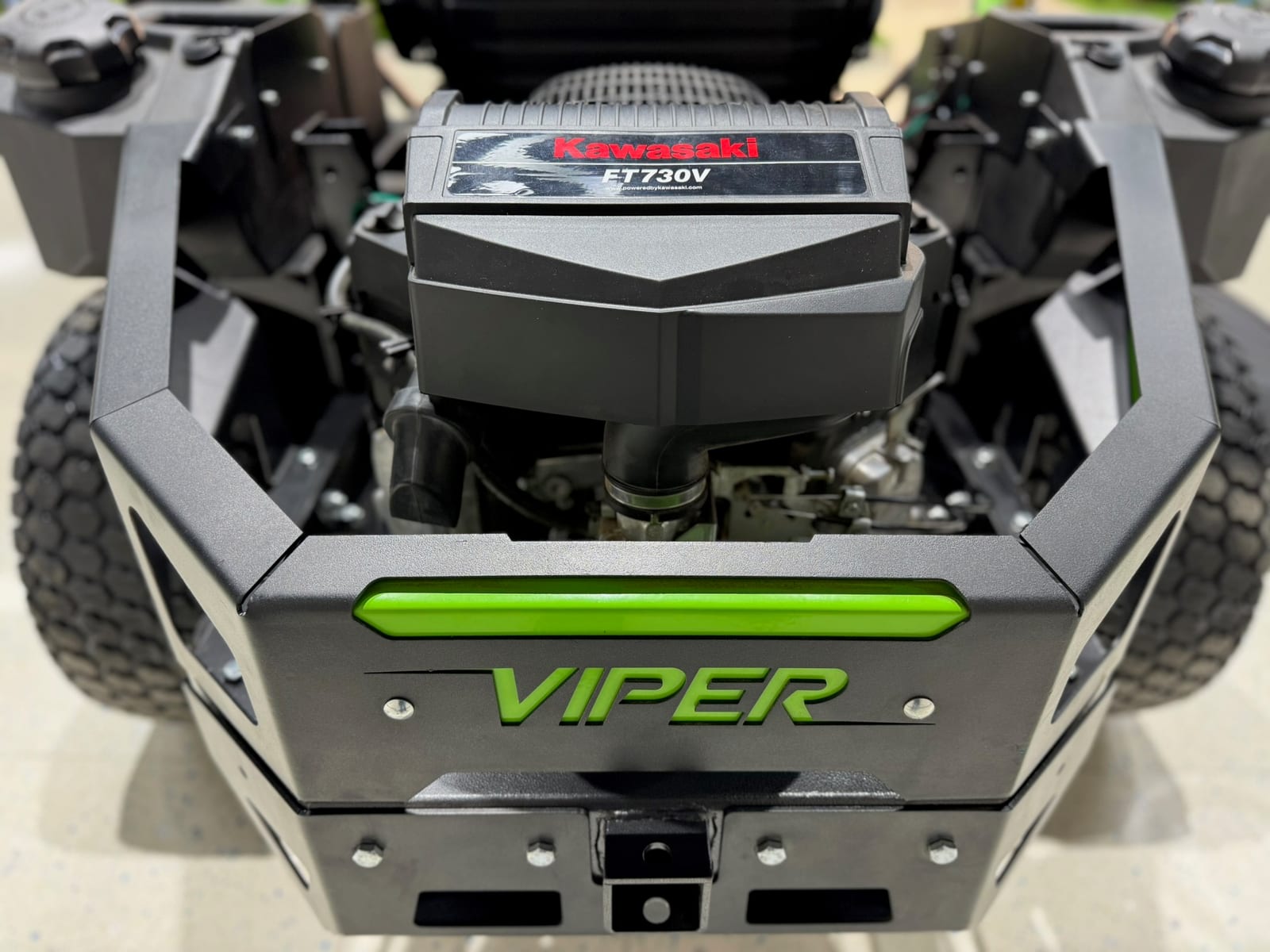

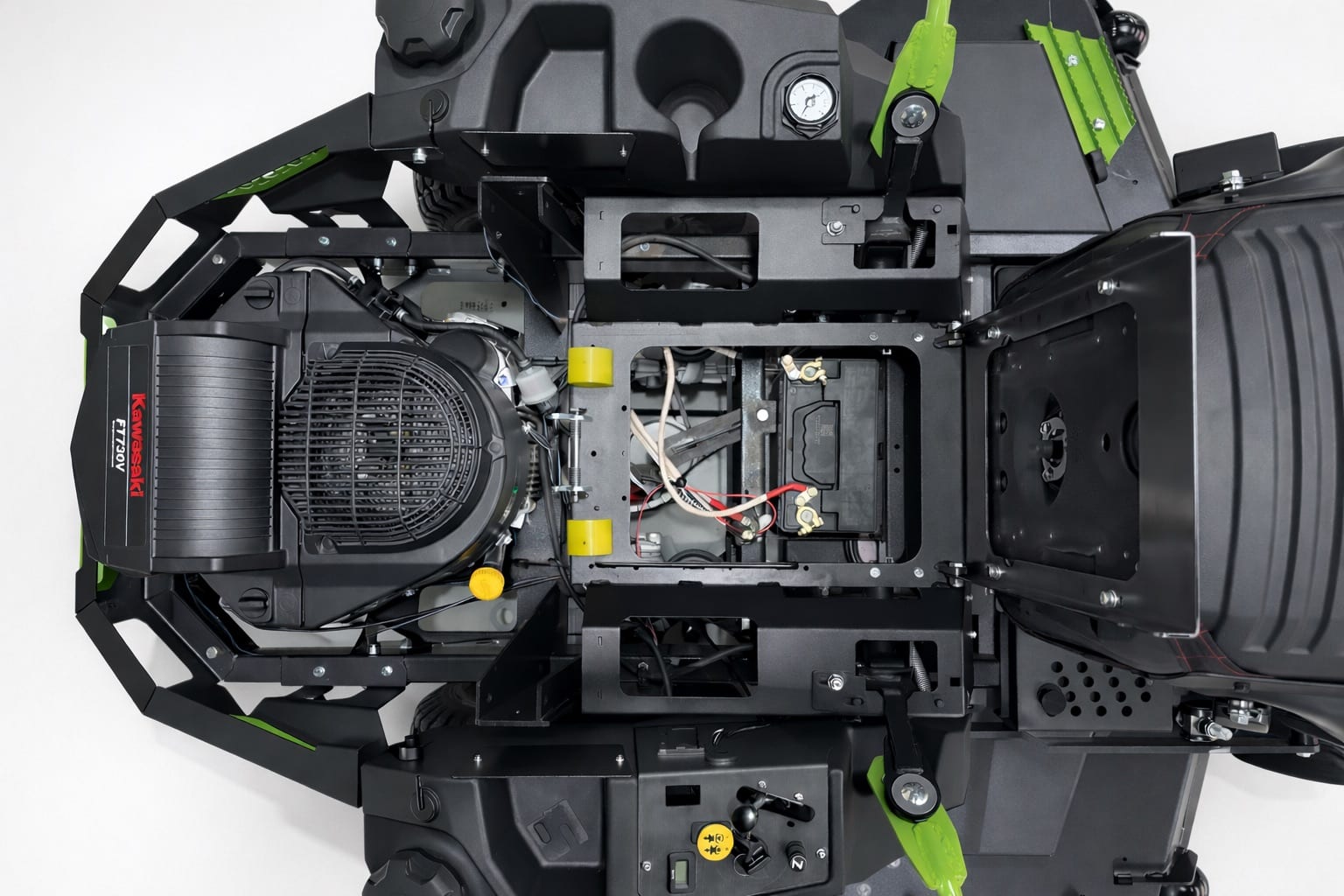

Before you twist anything out of an aluminum head, walk to the machine and read the engine shroud. The Viper lineup uses only Kawasaki and Vanguard engines, and the correct NGK plug is dictated by which engine you have. The Kawasaki FR691 on the V-400 Series, the Kawasaki FR730 on V-600 Pro, the Kawasaki FT730 on V-600 XP and the entry V-800 Series, and the Kawasaki FX850 EVO EFI on the V-800 XP all take the NGK BPR4ES, gapped to 0.030 inch (0.76 mm) per Kawasaki. The Kawasaki FX1000 EFI on the V-800 Elite and the Kawasaki-option ProStand XP takes a different plug, the NGK BPR5ES, also gapped to 0.030 inch per Kawasaki. The Vanguard Big Block fitted as the alternative engine on the entry V-800 Series, the V-800 XP, and the ProStand XP takes the plug specified in your Vanguard manual, gapped to 0.030 inch (0.76 mm) and torqued to 180 lb-in (20 Nm) per Vanguard. The FX1000 EFI and FX850 EVO EFI are EFI engines with no carburetor. The Vanguard Big Block EFI Oil Guard System on the V-800 Elite alternative is in the same Vanguard family and should be serviced per the Vanguard manual that shipped with the engine. Never substitute a Kohler-spec plug, a Honda plug, or any plug other than the one your engine's OEM specifies. NGK is what Kawasaki calls for, and the part numbers above are the specific NGK plugs Kawasaki publishes for the engines named here.
How often do Kawasaki and Vanguard say to replace the plug?
The honest answer is on a schedule, not by feel, and the schedule comes from the engine OEM. Per Kawasaki's service manual, the spark plugs on the Kawasaki engines in the Viper lineup are inspected, cleaned, and replaced on the interval published for your specific engine. That applies to the FR691 on the V-400 Series, the FR730 on V-600 Pro, the FT730 on V-600 XP and the entry V-800 Series, the FX850 EVO EFI on the V-800 XP, and the FX1000 EFI on the V-800 Elite and Kawasaki ProStand XP; check the schedule in the Kawasaki manual for that engine. Per Vanguard's service literature, the Vanguard Big Block on the V-800 Series alternative trims and the ProStand XP runs on its own published interval; consult the manual that shipped with the engine for the exact cleaning and replacement hours. For a commercial cutter putting twenty to thirty hours on a machine each week, the plug replacement interval typically lands in the neighborhood of every few months in heavy mowing season. For a one-acre homeowner running thirty to fifty hours per year, you are likely looking at a plug replacement every several seasons by hours, but most homeowners replace annually at winterization regardless because the cost is trivial. Whatever your cadence, two truths matter: every V-twin engine in the lineup has two plugs, not one, and a fouled or worn plug shows up first as hard cold starts, then as rough idle, then as a misfire under load. Replace in pairs every time, and replace per the OEM hour interval, not by guess.
Gaps, torque, and reading the old plug before you toss it
The gap and the torque are where most field replacements go wrong, and both are non-negotiable specs straight from the engine builder. For the NGK BPR4ES on the Kawasaki FR691, FR730, FT730, and FX850 EVO EFI, and the NGK BPR5ES on the Kawasaki FX1000 EFI, gap to 0.030 inch (0.76 mm) per Kawasaki. Use a wire-style gap tool, not a coin, and confirm the gap on a hard surface; a feeler gauge that drags lightly is correct. For the plug specified in your Vanguard manual on the Vanguard Big Block, gap to 0.030 inch (0.76 mm) and torque the plug to 180 lb-in (20 Nm) per Vanguard. Cranking down 'until it stops turning' is not the right approach, and over-torquing will either crack the porcelain or strip the aluminum head; use a torque wrench to the value in the engine's OEM manual. Before you throw the old plug into the recycle bin, read it. A light tan or grayish-brown insulator means the fuel mixture and ignition are right where they should be. Black, sooty deposits point to a rich mixture, a clogged air filter, or excessive idling. A glassy, wet appearance points to oil in the chamber, which on a high-hour V-twin is something to investigate before the next service. A white, blistered insulator points to a lean condition or pre-ignition, both of which warrant a deeper look at the fuel system: the carburetor on the carbureted FR and FT engines, or the EFI sensors on the FX-series and the Vanguard Big Block EFI Oil Guard. Diagnostic information is free, do not waste it.
Tools and supplies for a Viper mower spark plug replacement
Laying out the right tools before you start is the difference between a clean fifteen-minute service and a knuckle-busting hour. You need a spark plug socket sized to your plug hex with a rubber insert that holds the plug while you start the threads by hand, a 3/8-inch drive ratchet, a six-inch extension, a torque wrench that reads down into the inch-pound range for the Vanguard Big Block's 180 lb-in spec, a wire-style gap gauge to set the gap on a fresh plug, and a clean shop rag. Compressed air is useful for blowing debris out of the plug well before you crack the plug loose, because anything that falls down that hole goes straight into the combustion chamber. Order plugs in pairs. Every Kawasaki and every Vanguard engine fitted to a Viper is a V-twin, which means two cylinders and two plugs per engine. Replacing only one plug on a V-twin is a guaranteed misfire down the road as the new plug fires cleanly and the worn one drags behind it. For the Kawasaki FR691, FR730, FT730, and FX850 EVO EFI, that means two NGK BPR4ES plugs; for the Kawasaki FX1000 EFI, two NGK BPR5ES plugs. For the Vanguard Big Block, order two of the plug specified in your Vanguard manual. Only apply anti-seize compound if the engine's service manual specifies it; many modern plugs ship with a plating that does the job, so do not apply it unless the manual calls for it. A pair of nitrile gloves keeps skin oil off the porcelain insulators, which matters more than most people think on cold starts. Stage everything on a clean shop mat before you start, and keep the new plugs in their boxes until the second they go into the head.
Step-by-step: replacing the plugs on any Viper series
Park the Viper on a level surface, set the parking brake, which is integrated into the drive handles on the V-400 Series and the V-600 Series lineup and consistent with the V-800 Series trims and ProStand XP, and let the engine cool fully before you touch anything. A hot aluminum head and a steel plug thread are a recipe for galling and stripped threads; give it at least thirty minutes after the last cutting pass. Disconnect the negative battery terminal as an added safety step. Pull the spark plug boots straight up and off the plugs; do not yank by the wire. Blow compressed air around the plug well to clear grass and dust, then break each plug loose with the socket and extension, turning counter-clockwise. Lift the old plug out and inspect it as described above. Set the gap on the new plug to 0.030 inch with a wire gauge, whether it is the NGK BPR4ES for the Kawasaki FR691, FR730, FT730, and FX850 EVO EFI, the NGK BPR5ES for the Kawasaki FX1000 EFI, or the plug specified in your Vanguard manual for the Vanguard Big Block. Start the new plug by hand, turning clockwise, for at least three full turns before you put the socket on it; if it resists in the first two turns, back it out and start again. Cross-threading an aluminum head is the single most expensive mistake on this job. Tighten with the torque wrench to the spec for your engine: 180 lb-in (20 Nm) on the Vanguard Big Block per Vanguard, and the Kawasaki spec in the service manual for the FR691, FR730, FT730, FX850 EVO EFI, and FX1000 EFI engines. Push the spark plug boot down until it clicks fully seated on the plug terminal. Repeat for the second cylinder. Reconnect the battery, start the engine, and listen for a clean idle. Log the service with hour meter reading, date, and plug part number before you put tools away.
Why documenting this service protects the Viper warranty
Viper publishes the same 4-3-2 warranty wording on every product page: a 4-year full limited warranty, 3 years of coverage on the engine and Hydro-Gear components, and unlimited hours during the first 2 years, with the line that exclusions apply. That is a strong warranty on a commercial-grade machine, and a well-documented service history is part of getting full value from it. But every commercial engine warranty depends on proof that the engine was serviced on the OEM-specified schedule with the correct parts. A denied claim on a Kawasaki FX1000 EFI or a Vanguard Big Block because the wrong plug was installed, or because no plug service was ever logged, is a self-inflicted wound. Keep a paper or app-based service log in the toolbox. Each mower spark plug replacement entry should record the hour meter reading, the date, the NGK plug part number installed (BPR4ES for the Kawasaki FR691, FR730, FT730, and FX850 EVO EFI, BPR5ES for the Kawasaki FX1000 EFI, or the plug specified in your Vanguard manual for the Vanguard Big Block), the gap you set, and the torque value applied. Photograph the receipts and file them by machine serial number. Fleet operators benefit doubly: a standardized log across every V-400 Series, V-600 Series, V-800 Series, and ProStand XP in the fleet means any crew member can pick up the service history on any machine, and the resale value at trade-in is materially higher when the documentation is complete. While you are servicing ignition, do not skip the rest of the schedule. Per Kawasaki's service manual, engine oil changes run on a roughly 100-hour interval after the break-in change, with the oil filter on a 200-hour interval. Per Vanguard's service literature, the Big Block runs on a 100-hour oil and filter cadence (with the V-800 Elite's Vanguard Big Block EFI Oil Guard System extending to 500 hours only when that specific option is fitted). Per Hydro-Gear's service literature, the transmission service interval is an initial change (75 to 100 hours on the smaller ZT-2800 through ZT-3800, 100 hours on the larger ZT-4400 and ZT-5400) then every 400 hours with 20W-50 engine oil meeting API SL, not ISO hydraulic fluid; the matched kit is part #72750 for the smaller units and #72881 for the larger ones. Service the whole machine on schedule and the spec sheet earns out.
Frequently Asked Questions
A mower spark plug replacement on a Viper is a fifteen-minute job that protects a commercial-grade machine all season long, and the rules come straight from the engine builder, not from the deck. On the Kawasaki FR691 (V-400 Series), FR730 (V-600 Pro), FT730 (V-600 XP and entry V-800 Series), and FX850 EVO EFI (V-800 XP), the plug is the NGK BPR4ES, gapped to 0.030 inch (0.76 mm) per Kawasaki; on the Kawasaki FX1000 EFI (V-800 Elite and Kawasaki ProStand XP), the plug is the NGK BPR5ES, also gapped to 0.030 inch. Follow the cleaning and replacement interval in the Kawasaki manual for your engine. On the Vanguard Big Block fitted as the alternative on the entry V-800 Series, V-800 XP, and ProStand XP, use the plug specified in your Vanguard manual, gapped to 0.030 inch (0.76 mm) and torqued to 180 lb-in (20 Nm) per Vanguard. Every engine is a V-twin, so replace in pairs, every time. Log the service with hour meter reading, date, part number, gap, and torque so the 4-year full limited warranty, the 3 years on engine and Hydro-Gear, and the unlimited-hours clause during the first 2 years are protected when you need them. Spec-sheet honest, OEM-cited, NGK only. That is how a Viper earns the cold-start reputation it ships with.
