Zero Turn Mower Spindle Greasing on a Viper: How to Do It Right

Why zero turn mower spindle greasing matters on a commercial deck

A deck spindle is the vertical shaft that connects a mower blade to the drive pulley above it, supported by bearings pressed into a machined housing. On a Viper V-800 Series, V-600 Series, or ProStand XP, that housing is cast iron and the bearings are dual, double-row units engineered for high radial and thrust load. On the V-400 Series, the deck uses HD split-metal spindle pulleys riding on the same kind of demanding duty cycle. Every second you are cutting grass, those assemblies are spinning fast while the blades chop through wet clippings, dust, dirt, small rocks, mulch, pine needles, and everything else that hides in turf. That is an extremely tough environment for any bearing. Lubrication does three critical jobs at once. It separates the rolling elements so the contact is metal-to-film-to-metal rather than metal-on-metal, it carries heat away from the contact patch so the bearing does not cook itself, and it forms a barrier that keeps water and fine grit out of the bearing interior. When lubrication is neglected, all three of those jobs fail at once. A dry or contaminated spindle starts making noise, develops play, throws the deck out of balance, and eventually seizes or shatters mid-cut. Replacing a spindle assembly is not cheap, and on a working machine the downtime is usually worse than the parts cost. A disciplined zero turn mower spindle greasing routine, run on the schedule your operator's manual specifies, is the highest-return maintenance habit you can build around a commercial-grade Viper deck.

Does your Viper spindle even take grease? Check the manual first

Before you ever load a grease gun, stop and answer one question honestly: are the spindles on your specific Viper model actually designed to accept grease, or are they sealed bearing units that require no field lubrication? The Viper product pages describe the V-800 Series, V-600 Series, and ProStand XP spindles as cast iron with dual, double-row bearings, and the V-400 Series as HD split-metal spindle pulleys, but Viper's published spec sheets do not tell you whether those bearings are sealed-for-life or have grease fittings (zerks) for owner service. That answer lives in your operator's manual for your model and serial number. This is critical because the wrong assumption costs money in both directions. If you treat a sealed bearing like a greasable one, you might damage a seal trying to inject grease where there is no fitting. If you treat a greasable bearing like a sealed one and skip the service entirely, you starve it of lubrication and shorten its life dramatically. Pull out the manual that came with your machine, find the spindle section, and confirm three things: whether your spindles have zerk fittings, what grease specification is approved, and what interval is called out. If the manual is missing, request a replacement from your Viper dealer using the phone number on the company contact page, 941-340-2675. Do not rely on a guess from a forum or an answer from another brand's manual. Spindle hardware varies by model and by build year, and what is correct for one Viper deck is not automatically correct for another.

What grease and what interval, when the manual calls for greasing

If your Viper operator's manual confirms that your spindles have zerk fittings and require periodic greasing, the next question is which grease to use and how often. The honest answer here is exactly what the manual prints, not what an internet article tells you to use. Most commercial mower OEMs specify a high-quality lithium-based grease with good high-temperature performance and water resistance, often something in the NLGI No. 2 range, but the precise specification for your Viper deck has to come from the lubrication chart in your manual. Do not mix incompatible grease types, because some thickeners do not play well together and can break down the existing grease already packed into the bearing. Do not grab a random tub of unmarked grease off a barn shelf. If the manual specifies a specific viscosity or thickener system, match it. As for interval, treat any number you read on the internet as a placeholder until you confirm yours. Different Viper series, different operating conditions, and different cutting environments justify different schedules. A crew running a V-800 Elite eight hours a day in dusty commercial properties needs a shorter grease interval than a property owner pulling a V-400 Series out of the barn twice a month. The manual sets the baseline; you tighten the interval when conditions are wet, dusty, or abrasive, because water intrusion accelerates bearing failure far more than a dry environment does. Build the task into a fixed routine you actually follow, such as every Monday morning before the first route, or at every blade sharpening, or at every oil change against the OEM 100-hour engine oil interval (per Kawasaki's or Vanguard's service manual). Consistency beats a perfectly calculated interval that nobody remembers to hit.

Step-by-step zero turn mower spindle greasing on a Viper

Once the manual has confirmed that your Viper spindles take grease, the procedure itself is straightforward. Start by parking the mower on a level concrete or asphalt surface and setting the parking brake. On the V-400 Series and V-600 Series, the parking brake is integrated into the drive handles, so confirm the handles are locked outward into the park position. Shut off the engine, remove the ignition key, and disconnect the spark plug wires before you do any work near the deck. This is not optional even if you are only greasing and not touching blades. Let the deck and engine cool for a few minutes so you are not putting hands on hot metal. Lower the deck to its lowest cut height for easy access, or raise the machine using a proper jack and jack stands rated for the machine's weight. Never crawl under a deck supported only by the hydraulic lift. Wipe each zerk fitting clean with a shop rag so you are not pushing dirt into the bearing with the first stroke of the gun. Connect a clean grease gun loaded with the grease specified by your Viper operator's manual, and slowly pump the handle, watching for old grease to start emerging at the seal lip. Stop as soon as you see fresh grease appearing, or after the small number of strokes your manual calls out, whichever comes first. Do not keep pumping until grease blows out a seal, because a blown seal lets water in and that ends a bearing faster than almost anything else. Repeat the process for each spindle on the deck, wipe any excess with a clean rag, reconnect the spark plug wires, and log the service in your maintenance book with the hour meter reading and the date. Treat the log as part of the job; it is what makes the next service correct.

What to inspect during and after greasing

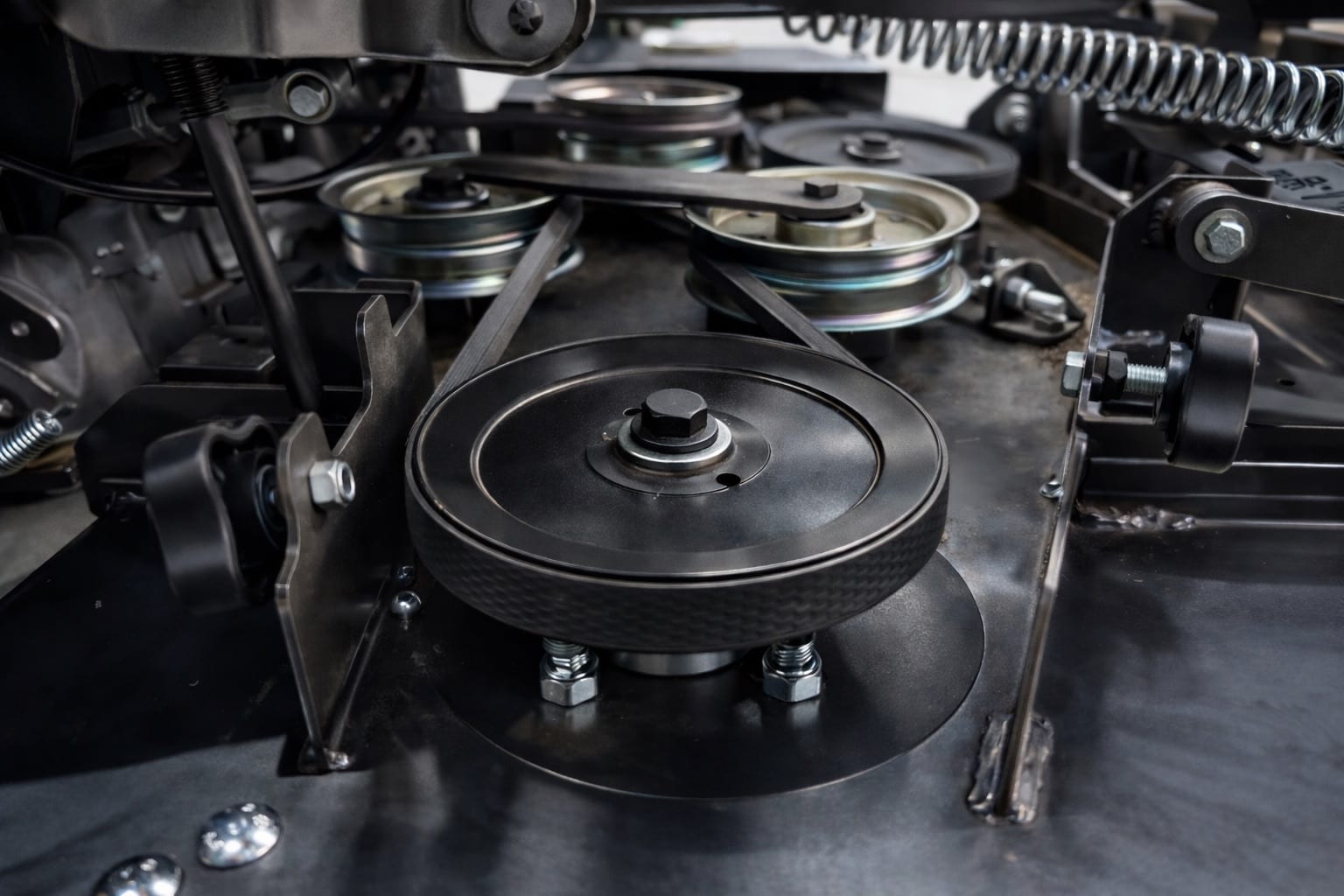

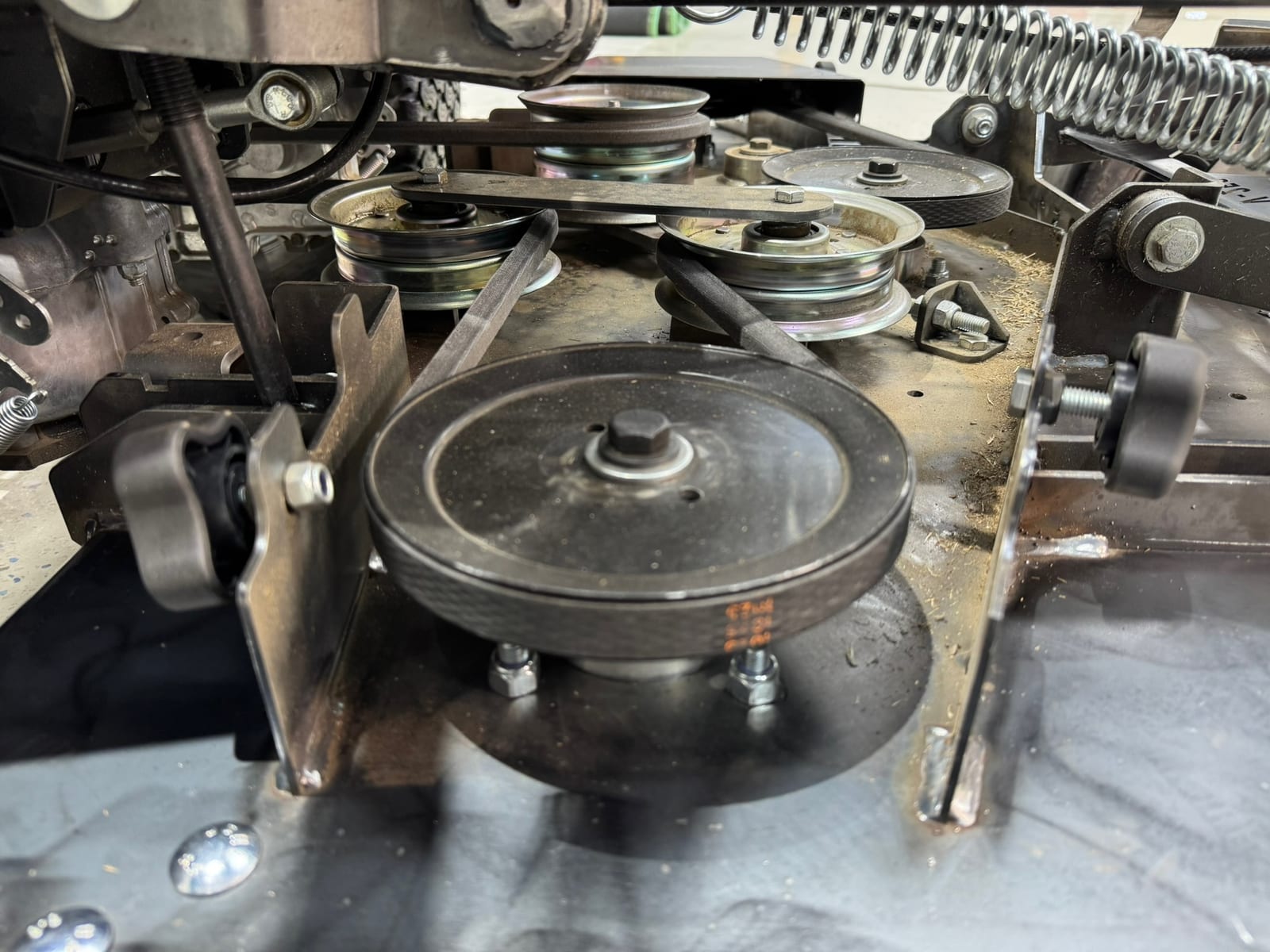

Greasing is also the best excuse you will ever get to inspect the rest of the deck, so slow down and actually look at what is in front of you. With the machine off and the spark plug wires disconnected, grab each blade with a thick rag and check for side-to-side play at the spindle. A healthy cast-iron spindle with sound bearings on a V-800 Series, V-600 Series, or ProStand XP should feel solid in your hand. Any perceptible wobble, roughness, or grinding noise as you spin the blade by hand is a warning sign that the bearing is already failing, and grease alone will not save it. On a V-400 Series with HD split-metal spindle pulleys, the same hand test applies: solid feel, no rough spin, no clicking. Check each blade for bending, nicks, and a workable edge, and check the deck shell around each spindle mount for cracks, especially near the mounting bolts. Look for streaks of old grease flung out across the top of the deck, which often signals an over-greased fitting or a blown seal at some point in the past. If you see that, plan to inspect the spindle more carefully next service. Confirm that the belt tensioner is moving freely and that the belt itself is not glazed, cracked, or shedding rubber. Verify that the recessed anti-scalping wheels on the V-800 Series and ProStand XP, where equipped, spin freely. After you are done, start the machine in an open area, engage the blades for a few seconds, and listen. A properly greased, balanced deck is quiet. Any new noise that appeared after greasing means shut down and investigate before running a route. Catching a marginal bearing on the shop floor is always cheaper than catching it in the middle of a customer's lawn.

Frequently Asked Questions

Zero turn mower spindle greasing is cheap insurance for the most heavily loaded bearings on your entire machine. On a Viper, those bearings are cast-iron spindles with dual, double-row construction on the V-600 Series, V-800 Series, and ProStand XP, or HD split-metal spindle pulleys on the V-400 Series. Treat them accordingly. Confirm in your operator's manual whether your specific spindles take grease at all, then use the grease specification, the volume, and the interval that manual prints, adjusted shorter when your cutting conditions are wet, dusty, or abrasive. Never pump so hard that you blow a seal, because the seal is what keeps water out and water is what kills bearings. Pair the greasing routine with a quick inspection of blades, belts, deck shell, and tensioner so small problems get caught before they become expensive ones. Log every service with the hour meter reading and the date, so you can track intervals honestly across the season and so the next person who touches the machine knows exactly where you left off. That simple habit turns zero turn mower spindle greasing from a guessing game into a rhythm, and rhythm is what protects a premium commercial deck from the slow creep of neglect that quietly destroys ordinary machines well before their time. Spend the five minutes. The deck will pay you back for years.
